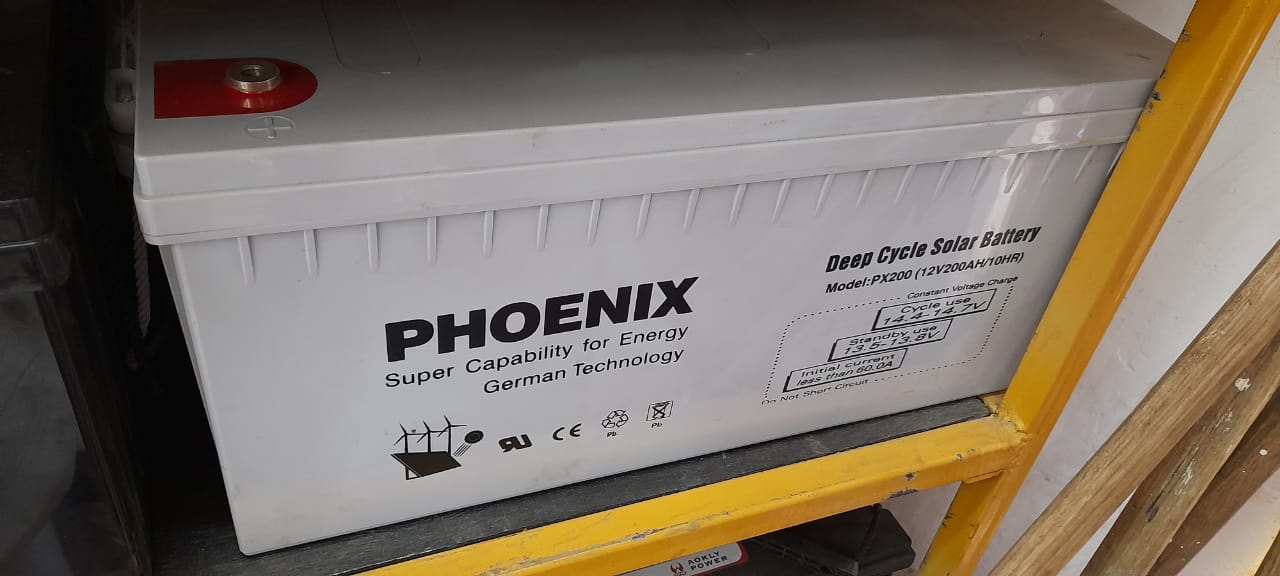

Solar Batteries (Deep Cycle)

Description

DC (Deep Cycle) series batteries provide superior high integrity and reliability. It is specially designed for frequent cyclic charge and discharging. By using strong grids, thick plate and specially active material are designed for repeated deep-discharge applications. The DC series batteries offer 30% more cyclic life than the standby series. It is suitable for solar and wind renewable energy storage, mobility and medical equipment and cable TV etc.

Various capacities are available but the specifications below are for the more common 200Ah version.

Specifications

Specifications
Cells Per Unit 6
Voltage Per Unit 12
Capacity 200Ah@20hr-rate to 1.75V per cell @25℃
Weight Approx. 56.0 Kg (Tolerance±3.0%)
Max. Discharge Current 2000A (5 sec)
Internal Resistance Approx. 3.9 mΩ
Terminal F16(M8)/F10(M8)
Max. Charging Current  60.0 A
Container Material A.B.S.
Operating Temperature Range Discharge: -20℃~60℃
Charge: 0℃~50℃
Storage: -20℃~60℃
Normal Operating Temperature Range 25℃±5℃
Float Charging Voltage 13.6 V~13.8 V @ 25℃
Cycle Use Voltage 14.6 V~14.8 V @ 25℃
Design Life 12 years (floating charge)
