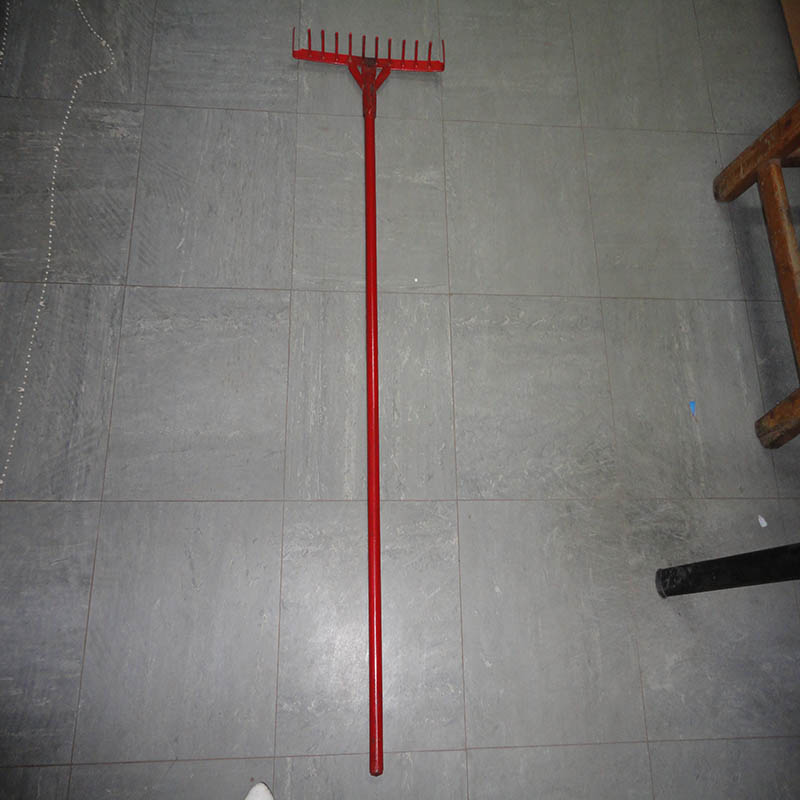

Rake

Description

Item general quality No excess metal on the eye, No dents on the teeth
Number of teeth 12 teeth slightly curved.
Distance between teeth 30mm ± 5 mm
Rake width 350 mm – 400 mm
Length of teeth (respecting the bending) 720 mm ± 5%
Length of teeth holder 20 mm  ± 5%
Thickness of teeth Min 2 mm
Eye diameter 25 mm – 30 mm
Weight of the head without handle 450 g – 550 g
Rake design The teeth are riveted into the head.
Rake head finishing Smooth finish,spray painted

Chemical Composition

Carbon content: 0.4% to 0.5%
Manganese content: 0.5% to 0.8%
Chromium 0.45% Maximum
Silicone content: 0.25% maximum
Phosphorus and Sulphur: 0.06% maximum
Rockwell hardness C (HRC) 25 minimum to 48 maximum in hardened zone of the teeth
